Lead Time: Standard production lead time: 10–15 business days
Shipping Method Options:
Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
All models are shipped directly from our China headquarters.
DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.
About this item

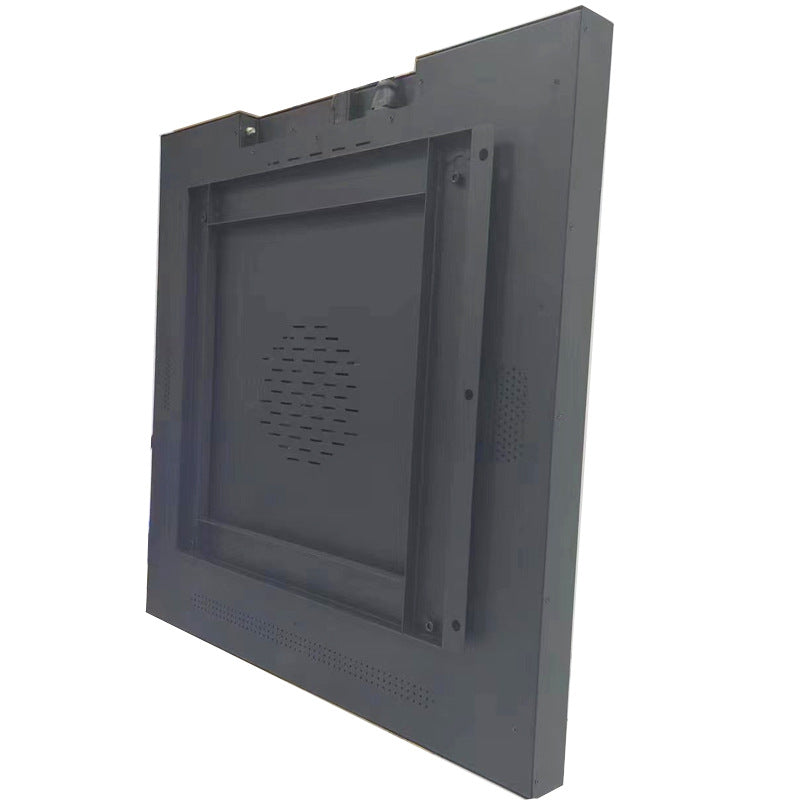

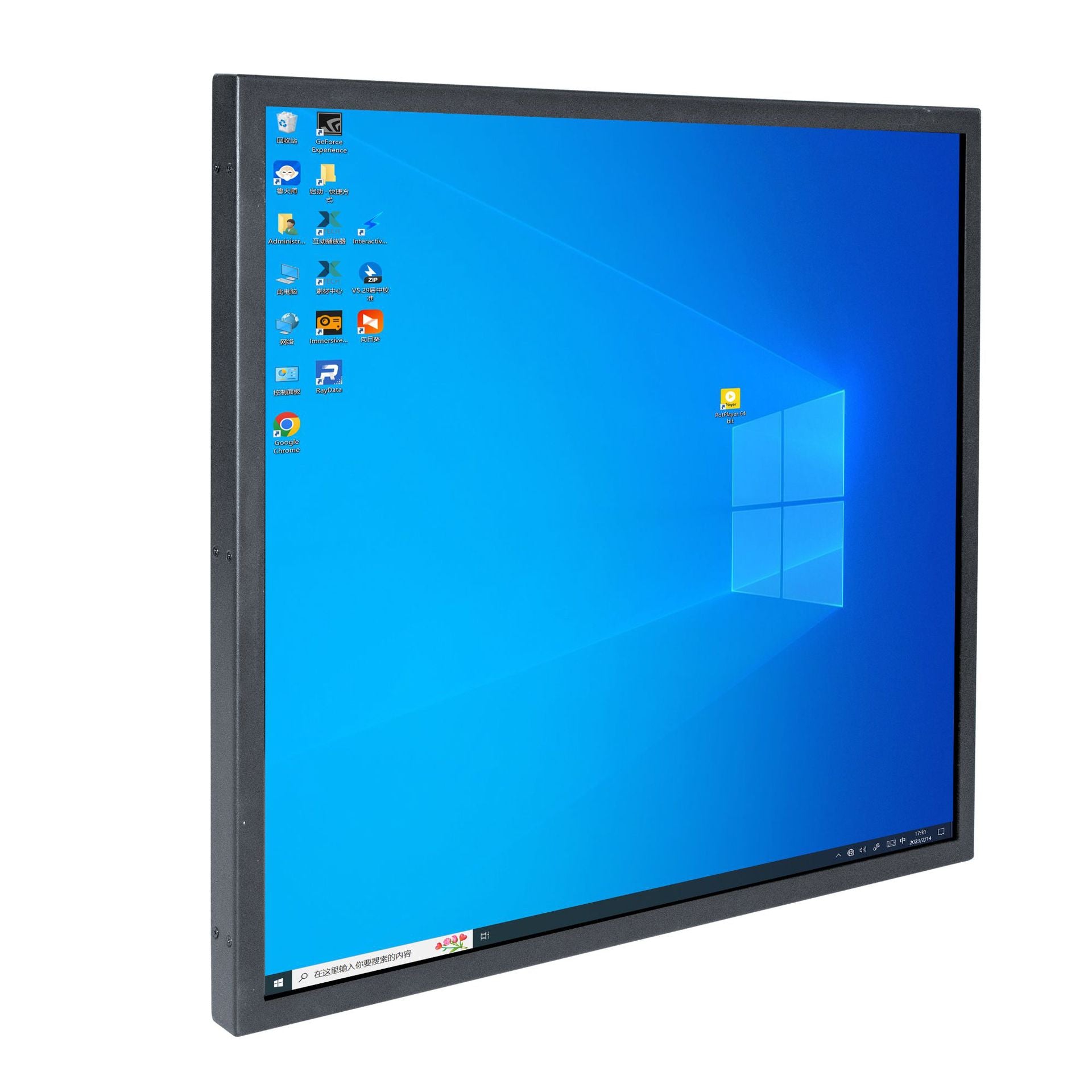

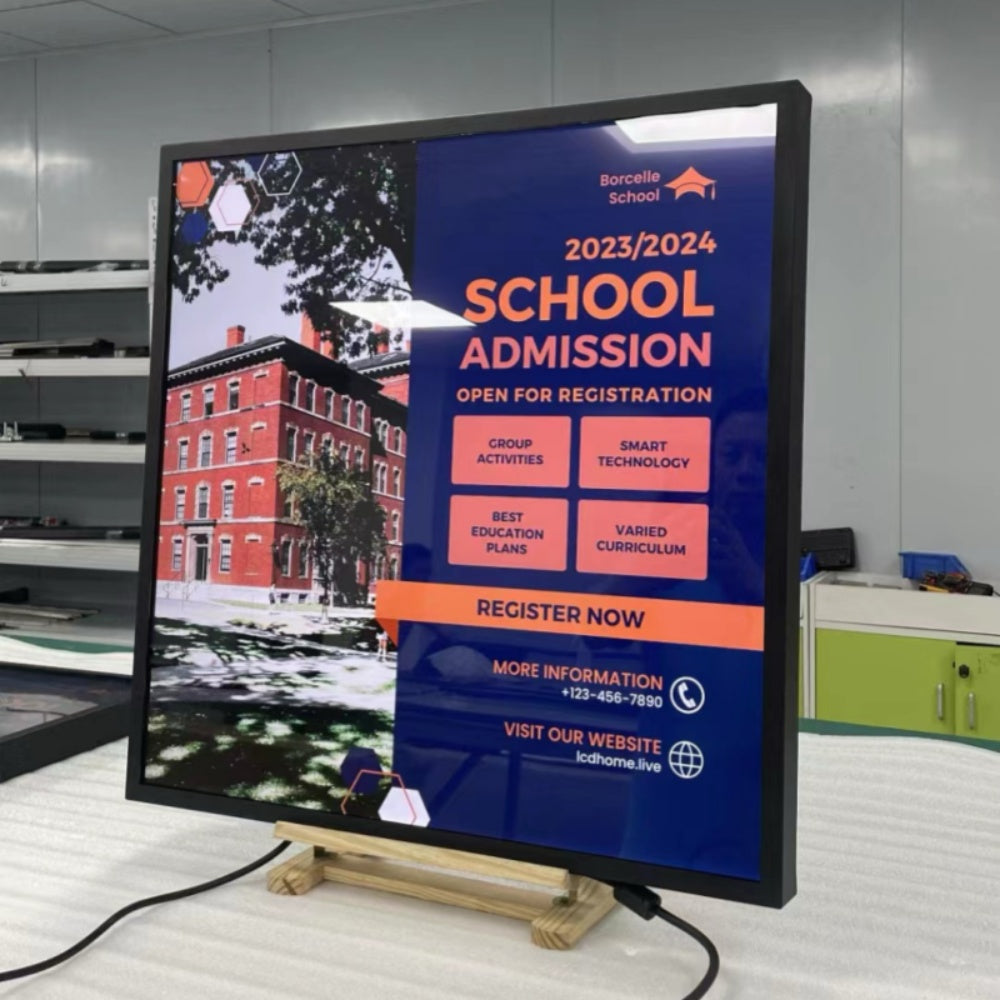

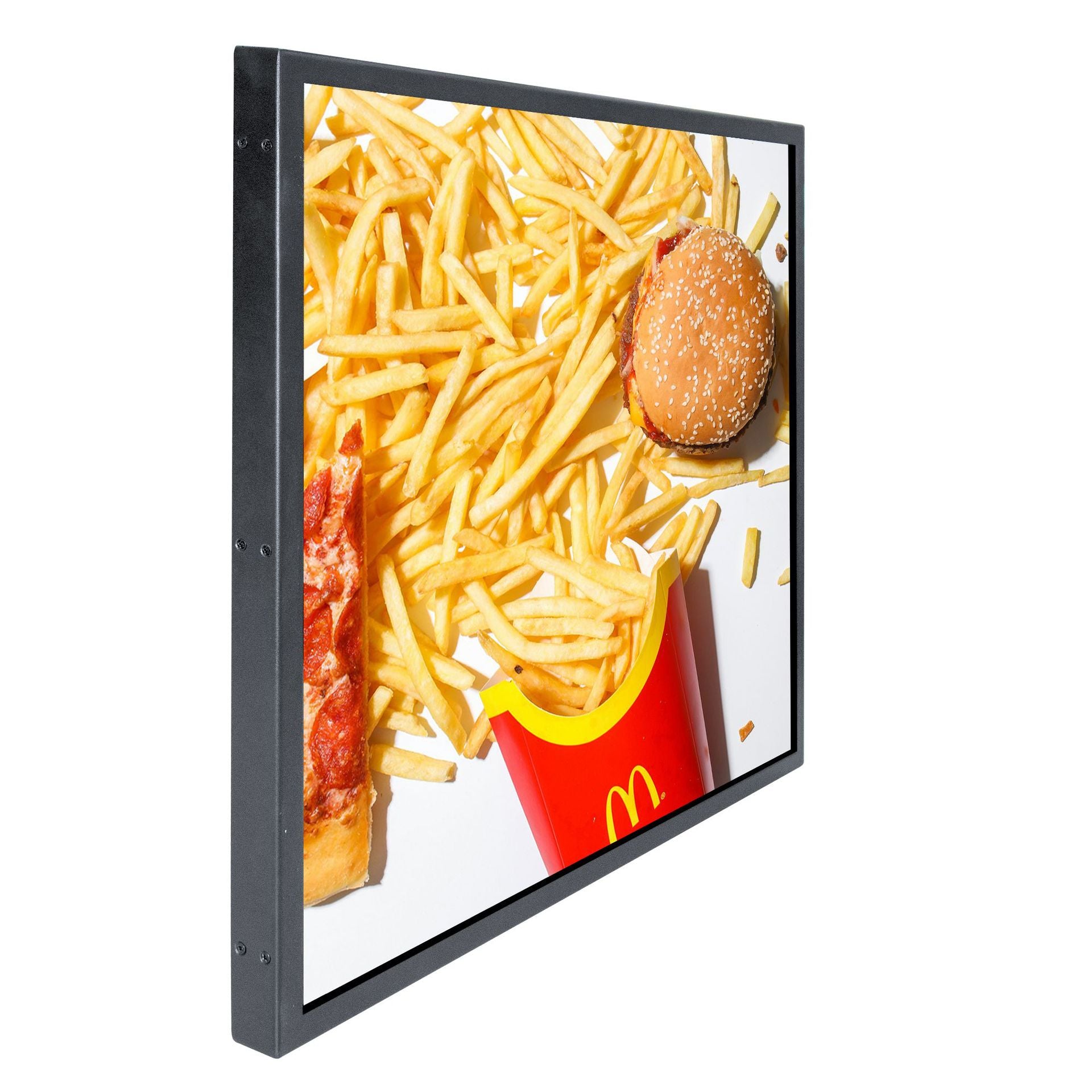

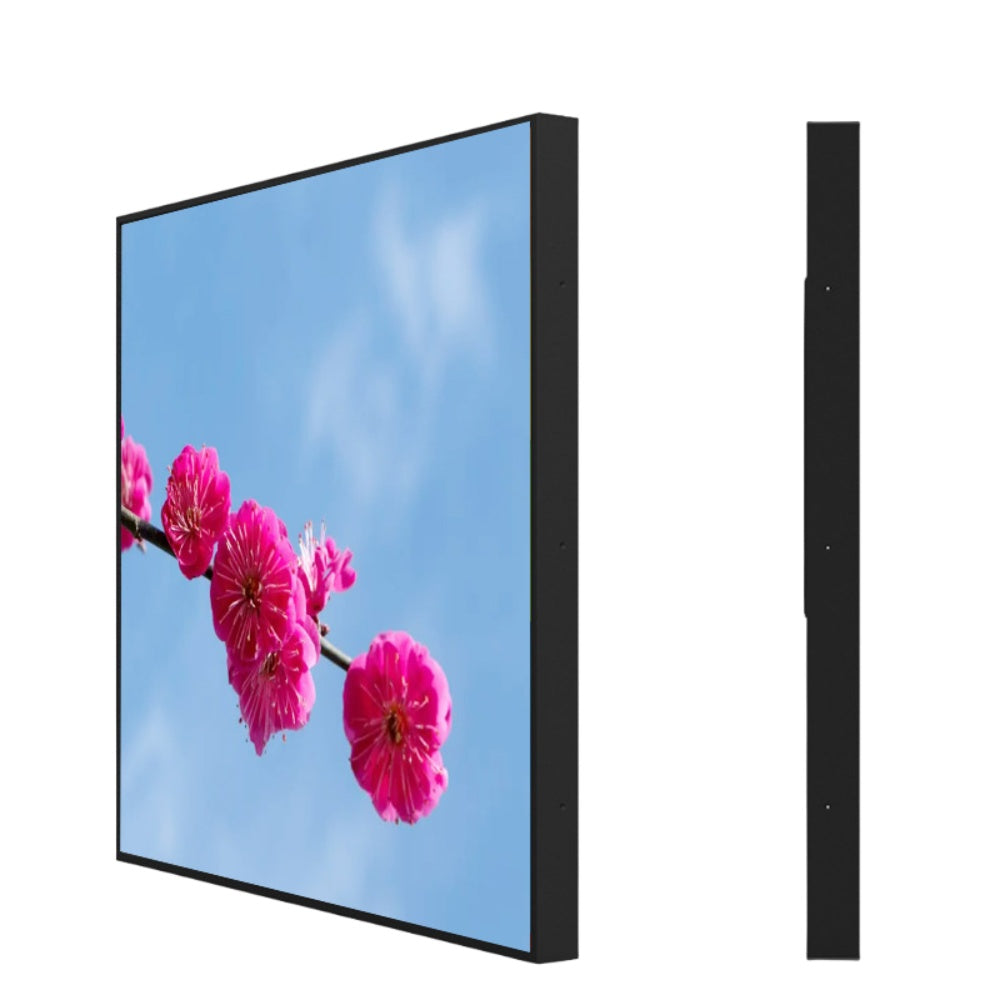

The 27.7-inch Square Shape LCD screen uses LED backlight, which has more uniform display brightness and wider color gamut. Industrial-grade design, ultra-high reliability and high stability, with an average trouble-free operation time of more than 50,000 hours. It uses the RK3568 quad-core chip solution, equipped with the Android11 system, with a maximum main frequency of up to 2.0GHz, and has super performance. Supports AFBC (frame buffer compression), 4K/H.265 hard decoding, 1080P video decoding, and 4K-level video playback. Supports infrared remote control, RJ45, USB, OTG and other rich interfaces
FEATURES
The LCD Screen is made of metal, which is radiation-proof, magnetic-field-proof and strong-electric interference-proof Professional hard screen technology is adopted, with large viewing angle, fast response speed and high color reproduction. LED backlight mode is adopted, and the brightness is more uniform High physical resolution of 950*1080, and the picture quality is more delicate The viewing angle can reach 178°, which is close to the horizontal 1200:1 ultra-high contrast ratio, the picture display is more vivid and the color performance is more outstanding Industrial-grade design, high reliability, high stability and low power consumption
PARAMETERS
The Screen
Size
FXP-27.7"
Screen supplier
LG
Resolution
950*1080
Display size (mm)
465(H)×529(V)
Brightness
500cd/m2
Contrast
1200:1
Viewing angle (horizontal/vertical)
89/89/89/89 (Min.)(CR≥10)
Response time
8ms (typ.)
Display color
16.7M
Pixel pitch
0.0606×0.1818 mm
Refresh rate
60Hz
Control Board
Motherboard
RK3568,4Core ARM Cortex-A55, 2.0GHz，Mali-G52 GPU
Memory
2+16G
System
Android 11
Interface
USB3.0、OTG、TF-card、Audio、RJ45、HDMI out、DC-IN
Audio
Speaker
Optional
Remote
Remote control
Optional
Weight
Net weight
TBD
Physical Size
Device size
505*569*40mm
Casing material
Metal Sheet
Power Consumption
Power input voltage
DC 12V
Device power
≤40W
Standby power
<1W
Working Environment
Operating temperature
0℃～+50℃
Operating humidity
10%～90% RH Non-Condensing
Storage temperature
-20℃～60℃
Storage humidity
5%～95% RH Non-Condensing
Language
OSD
English / Chinese
Accessories
Power cord
*1
Wall Hanging Bracket
*1
DIMENSION (unit:mm)
Usage Notes / Installation Tips
Send Program via Cloud Platform
Send Program via LEDArt
Play Program via U-disk/SD card
Login cloud platform Create and edit programs Send programs to the device NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address:http://www.led-cloud.cn/http://www.led-cloud.com
Run mobile APP LEDArt Create and edit programs Send program to the device NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
Save programs into U-disk or SD Card Insert U-Disk or SD Card Playback program automatically NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32
