23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload

Name: 23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload
Brand: LumoMark
SKU: LCD01-LM-TXP-24D5-N
Price: 495.0 USD
Availability: InStock

$495.00 USD

Shipping calculated at checkout.

Screen Type Without Touch Screen

Without Touch Screen

Package QTY. 1pcs Pack

1pcs Pack

Product variants

In stock: 9999

23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload

Package Included

Version	Package Included
TXP-23.1''	LCD Bar Display ×1, Power Plug Cable ×1, Remote Controller (Battery not included) ×1, Mounting Screws & Expansion Tubes ×1, Honeycomb Cardboard Box ×1

About this item

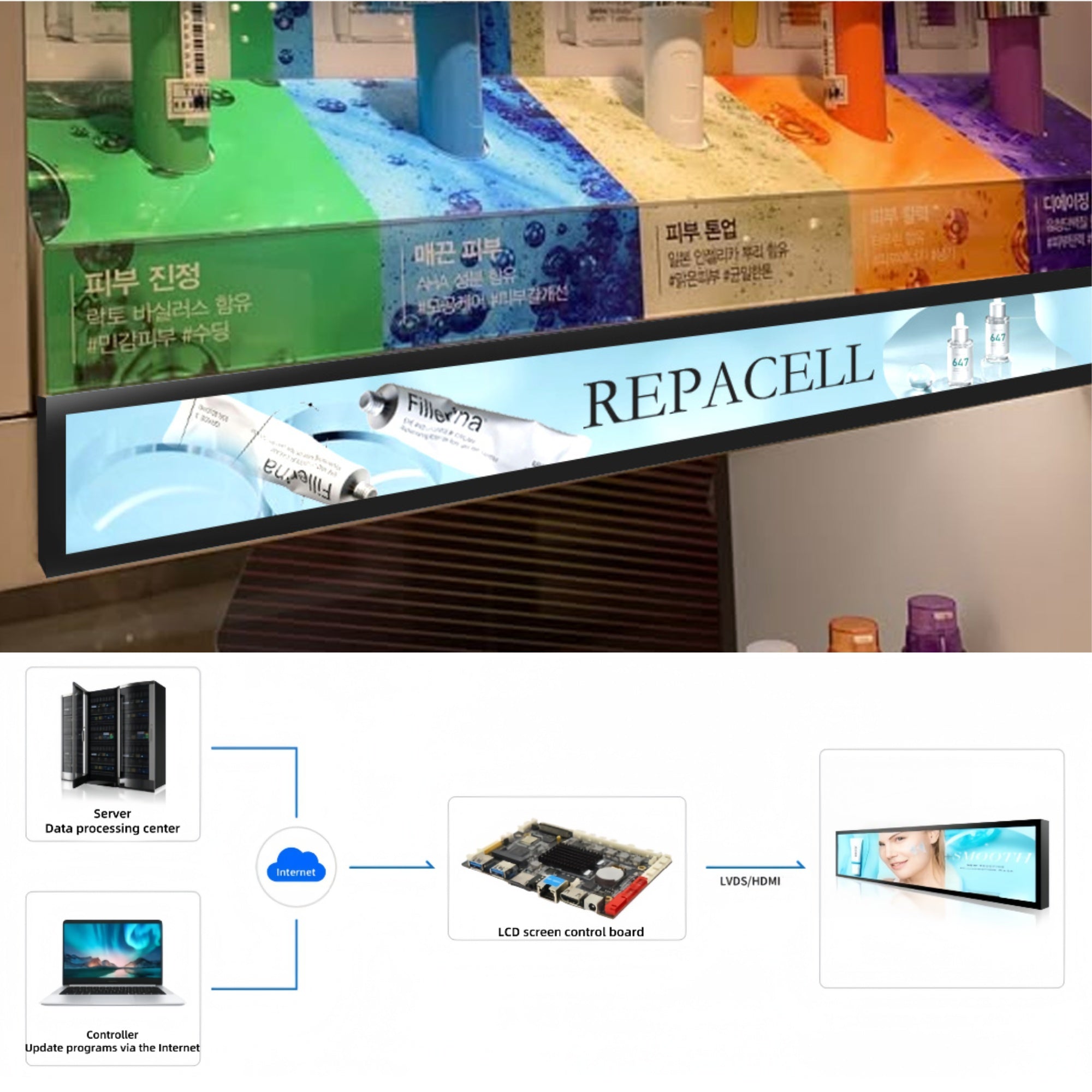

23.1" ultra-wide Android LCD bar screen, ideal for shelf-edge promotions and signage
120 (H) x1880 (V) pixel resolution, 500 cd/m² brightness, 178° wide viewing angle for clear display
Android 13 with quad-core CPU, 2 GB RAM, 16 GB storage for smooth performance
Multiple content upload options: Cloud Platform / LEDArt App / U-Disk & SD Card
Optional Remote Controller and built-in speaker for interactive applications

Order & Logistics

• Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
• Packing: Hard carton with protective inner foam.
• Shipping:
• Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
• Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
• DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.

Specifications

Specification	Value
Model #	TXP-23.1''
Screen Vendor	LG
Resolution	120 (H) x1880 (V) pixel

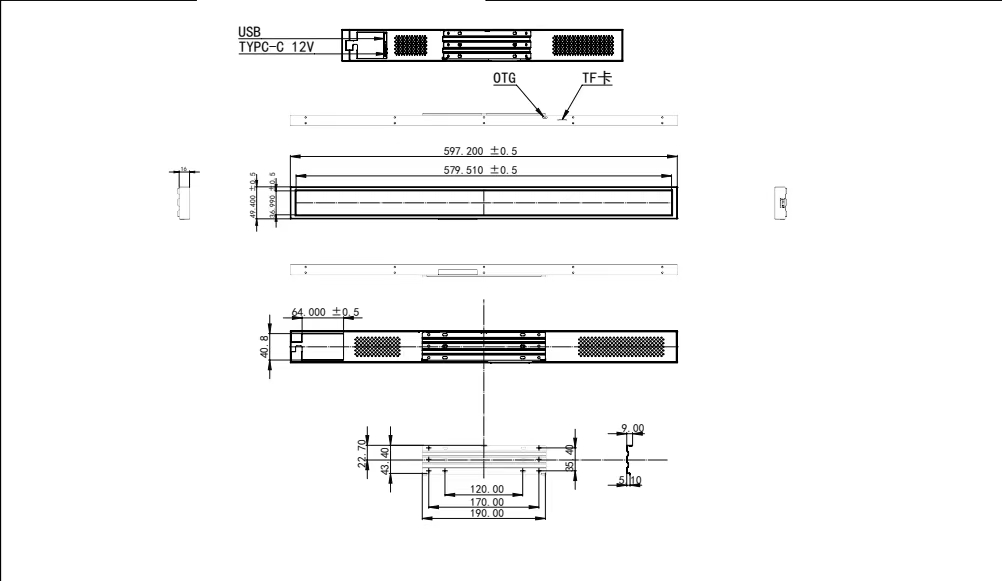

Display Size	579.51 (H)x 36.99mm(V)
Brightness	500 cd/m²
Contrast Ratio	3000:1
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	8 ms
Display Color	16.7M
Refresh Rate	60 Hz
CPU	RK3566 Quad-core ARM Cortex-A55 1.8GHz
GPU	Mali-G52
RAM / ROM	2 GB / 16 GB
System	Android 11
Interfaces	TFx1, DC-in, Micro USB 2.0 x1 USB 2.0 x1
Dimensions	594×64×27 mm
Housing Material	Iron Metal Sheet
Power Input	DC 12 V
Power Consumption	≤15 W (Standby <1 W)
Operating Temp.	0℃–50℃
Operating Humidity	10%–90% RH Non-condensing
Storage Temp.	-20℃–60℃
Storage Humidity	5%–95% RH Non-condensing
OSD Languages	English / Chinese
Data Sheet	Download Parameters (PDF)

Usage Notes / Operation Tips

Remote Controller can be used as auxiliary control
How to rotate the screen
How to set fixed IP address
How to upgrade MagicPlayer
Splice Multiple LCD Digital Signages On XiaoHui Cloud

Content Upload & Operation Steps

Send Program via Cloud Platform	Send Program via LEDArt	Play Program via U-disk / SD card
① Login cloud platform ② Create and edit programs ③ Send programs to the device Notes: Device mode: Networking mode; associate with cloud platform account.	① Run LEDArt mobile app ② Create and edit programs ③ Send program to the device Notes: Device mode: Stand-alone mode; phone on the same local network.	① Save programs to U-disk / SD card ② Insert U-disk / SD card ③ Auto playback Notes: Device mode: Stand-alone mode; format media as FAT32.
