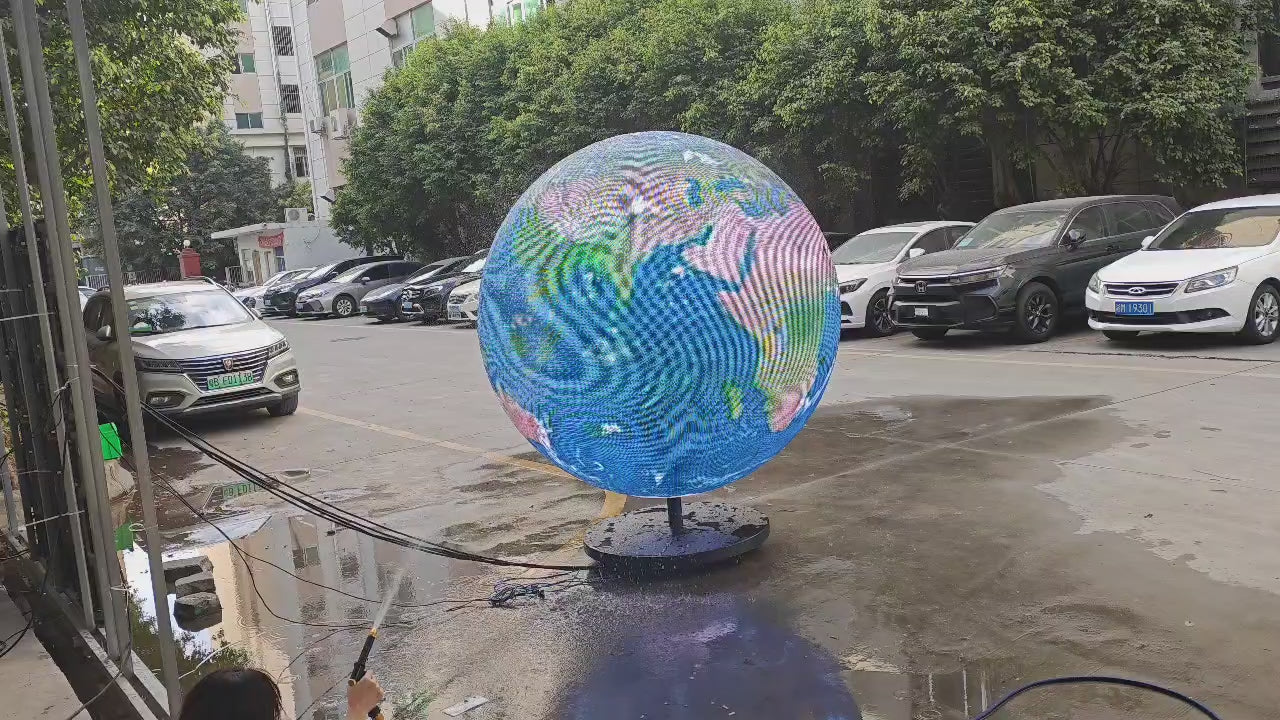

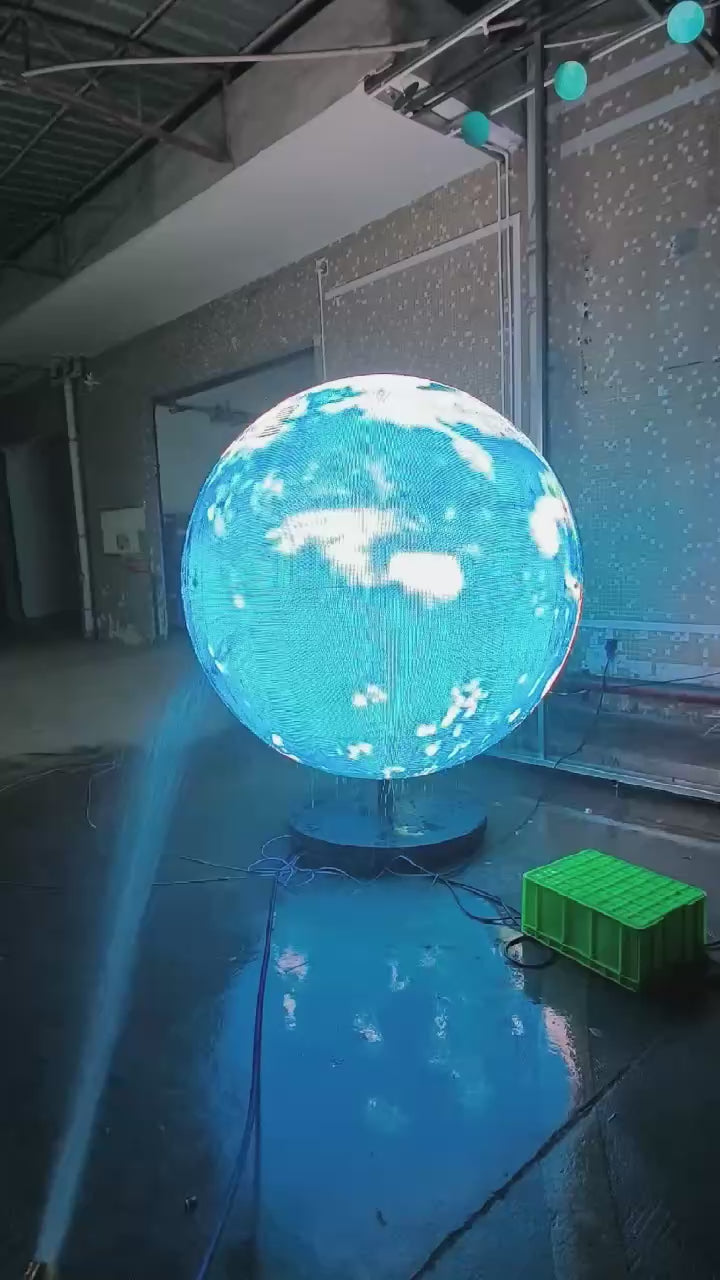

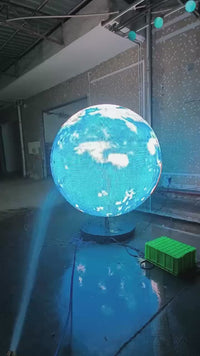

LS-O Outdoor LED Ball Screen – Dia. 150cm (5.0ft) | P5 | Weatherproof 360° LED Ball Screen for Commercial Signage & Events
LS-O Outdoor LED Ball Screen – Dia. 150cm (5.0ft) | P5 | Weatherproof 360° LED Ball Screen for Commercial Signage & Events
1 6

LS-O Outdoor LED Ball Screen – Dia. 150cm (5.0ft) | P5 | Weatherproof 360° LED Ball Screen for Commercial Signage & Events
$39,000.00 USD $39,000.00 USD
Shipping calculated at checkout.
Diameter & Pixel Pitch 150cm / 5.0ft – P5
Installation Environment & Type Outdoor / Standing
In stock: 9999
Description

LS-O Outdoor LED Ball Screen – Dia. 150cm (5.0ft) | P5 | Weatherproof 360° LED Ball Screen for Commercial Signage & Events

As you can see, 3D full-color indoor LED spherical display is a very complex structure and display effect, its basic composition needs at least 3-9 special shapes or more to form the final picture. For the solution of 3-D Full-color Indoor LED Spherical Display, we have abundant experience and case demonstration.

3-D Full-color Indoor LED Spherical Display with Diameter of 1.5meters, pixel pitch in 5mm for indoor use.

This link is for the 1.5Meter in Diameter P5mm Sphere LED Screen Outdoor Use.

  • Brightness: >4500 cd/m²
  • Unit include the Play Box (Novastar or Mooncell Brand, optional). Plug and play.
  • This 1Meter Sphere LED Screen is shipped in a complete ball and packed in wooden crate.
  • Spare module panels, driver , cables and wires included.

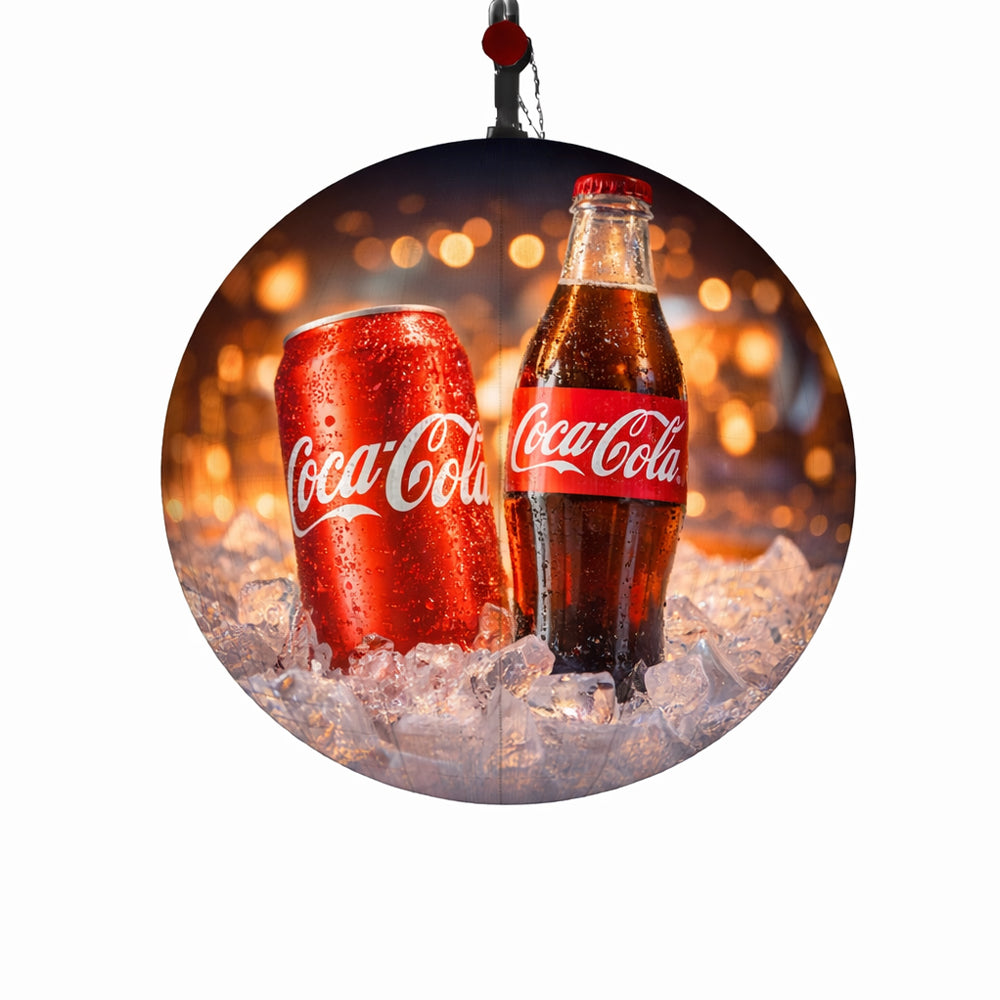

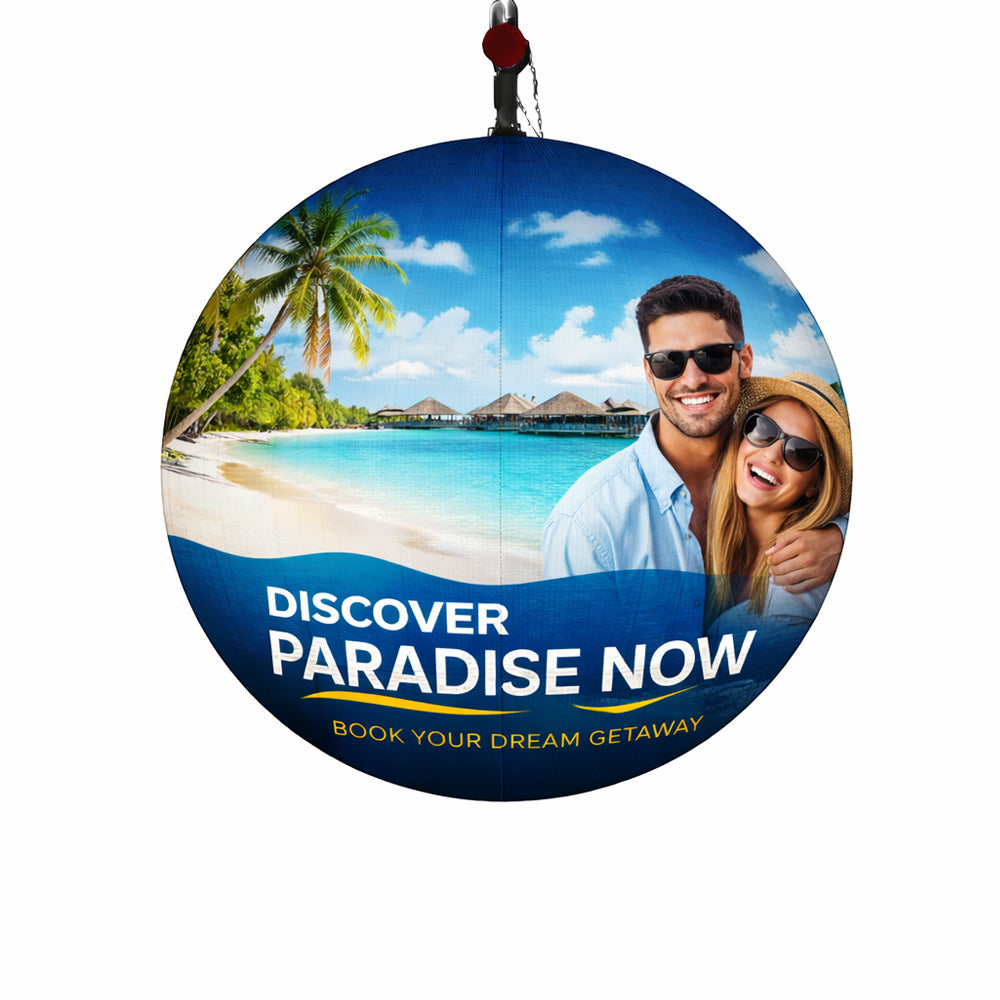

  • The sphere can be made for suspending or floor-standing, please tell the way you prefer when ordering.

Product Parameter:

1.5 Meters Diameter P5 Outdoor LED Sphere
Optical properties Model SPH-OUT-P5-150CM
LED lamp bead model SMD1921
Pixel pitch (mm) 5
Display Area (SQM) 2.32
Pixel density (Dots/㎡) 40000
Pixel Color Configuration 1R1G1B
Pixel arrangement (W*H) Customized
scanning method 8 Scan
Brightness (cd/㎡) ≥5000
Grayscale (bit) 14 bit
Visual refresh (Hz) ≥3840
Horizontal viewing angle (Deg) 140（±10）
Vertical viewing angle (Deg) 140（±10）
Physical properties Cell board size (L*W) Customized
Unit board weight (g) ≤410
Unit board mask flatness ≤0.2mm
Input voltage (DC) R:2.8V/GB:3.8V
Module maximum current (Ampere) R:≤3.2A
Module maximum current (Ampere) G B: ≤5A
Maximum power consumption (w/㎡) ≤600
Average power consumption (w/㎡) ≤270
Module installation structure Rear installed
mean time between failures ≥10,000 H
service life ≥100,000 H
Working environment Use environment Outdoor
Operating temperature range (℃) -10℃-60℃
Operating Humidity Range (RH) 30%-85%
Storage temperature range (℃) 0℃-40℃
Storage Humidity Range (RH) 35%-60%
Protection class Front IP65

Package Include:

  • 1x 1Meter Diameter LED sphere made and ship in complete ball
  • 1x Main Controller Box ( Brand Name: Mooncell)
  • Free Software Included

IMPORTANT NOTICE !

  • 【Lead Time】: The products takes 30-40 days to make.
  • 【Installation Method】: When choose floor-standing, the LED sphere comes with a floor-stand bracket and the bottom pole is with a small circle open with out display for the stand; while choose ceiling hanging, the top pole with a small circle open that empty without screen but left a ring for hanging.
  • 【Packing】：The LED Sphere Display will be packed in one-time plywood case for shipping.
  • 【Free Shipping】：
  • For shipping, the price on this page is include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
  • DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
