24.5 Inch (597.9×168.2mm Viewable) Commercial Ultra-Wide LCD Shelf Display | Android Stretched Bar Screen | Cloud, App & USB Playback
$565.00 USD $565.00 USD
Shipping calculated at checkout.
Screen Type Without Touch Screen
Package QTY. 1pcs Pack
In stock: 999

24.5 Inch (597.9×168.2mm Viewable) Commercial Ultra-Wide LCD Shelf Display | Android Stretched Bar Screen | Cloud, App & USB Playback

Package Included
Version Package Included

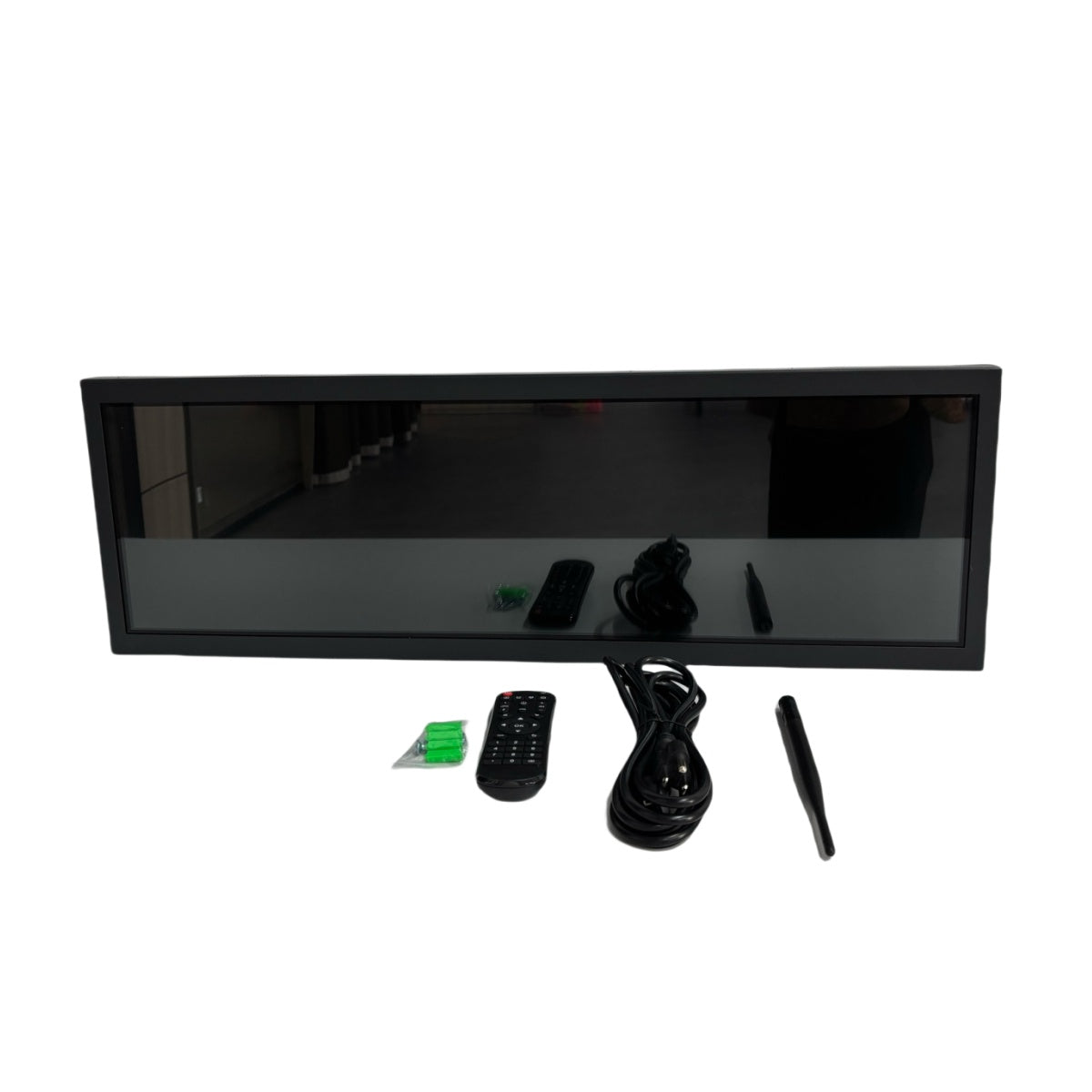

24.5" Model 1 × 24.5" LCD Screen；1 × Power Plug Cable；1 × Remote Controller (battery not included)；1 × Mounting Screws & Expansion Tubes；1 × Honeycomb Cardboard Packing Box
About this item
  • 24.5" ultra-wide LCD with Android 11, ideal for shelf-edge ads, signage, and creative displays
  • Durable metal housing with anti-radiation, anti-magnetic, and anti-interference design; MTBF > 50,000 hours
  • RK3568 Quad-Core CPU + Mali-G52 GPU; supports 4K/H.265 decoding and smooth playback
  • 1920×540 resolution, 500 cd/m² brightness, 1200:1 contrast, 178° wide viewing angle, 16.7M colors
  • Multiple control options: Cloud CMS, LEDArt App, USB/SD playback, LAN, and Wi-Fi
  • Optional capacitive touch and IR remote for interactive use
  • Suitable for retail, shopping malls, exhibitions, transport hubs, and advertising walls

Order & Logistics
  • Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
  • Packing: Hard carton with protective inner foam.
  •  Shipping:
  • Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
  •  Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
  • DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Key Specifications
Specification Value
Model TXP-24.5''
Screen Vendor LG
Viewable Area 597.9 × 168.2 mm
Resolution 1920 × 540
Brightness 500 cd/m²
Contrast Ratio 1200:1
Viewing Angle (H/V) 178°
Response Time 8 ms
Display Colors 16.7M
Pixel Pitch 0.27963 × 0.27963 mm
Refresh Rate 60 Hz
Mainboard RK3568 Quad-Core ARM Cortex-A55 2.0GHz; Mali-G52 GPU
RAM / ROM 2 GB / 16 GB
System Android 11
Touch Optional Capacitive Touch
Audio Optional Speaker
Remote Optional IR Remote
I/O Interfaces USB 3.0, OTG, TF-card, Audio, RJ45, HDMI OUT, DC-IN
Net Weight ≈ 5 kg
Dimensions (W×H×D) 724.1 × 169 × 59 mm
Housing Material Iron Metal Sheet
Power Input AC 100–240 V, 50–60 Hz
Power Consumption ≤ 35 W (Standby < 1 W)
Operating Temp 0–50 ℃
Storage Temp −20–60 ℃
Humidity 10%–90% RH (Operating); 5%–95% RH (Storage)
OSD Languages English / Chinese
Usage Notes / Installation Tips
Cloud Platform LEDArt APP U-Disk/SD Playback
Login cloud platform
Create & edit programs
Send programs to the device
Note: Set device to networking mode and bind to cloud account. Cloud server: http://www.led-cloud.cn / http://www.led-cloud.com 		Run LEDArt App
Create & edit programs
Send program to the device
Note: Set device to stand-alone mode; phone must be on the same LAN 		Save programs to U-disk/SD card
Insert U-disk/SD card
Playback starts automatically
Note: Set device to stand-alone mode; USB/SD must be FAT32
Reference Documents & Tutorials
