SL Series 22 Inch Ultra Slim Square LCD Display Screen – 387.7×387.7mm Viewable, 22mm Thickness, No Touch | Dadonlion Platform / USB Disk Content Upload
$1,190.00 USD $1,190.00 USD
Shipping calculated at checkout.
Screen Type Without Touch Screen
Package QTY. 1pcs Pack
In stock: 999

SL Series 22 Inch Ultra Slim Square LCD Display Screen – 387.7×387.7mm Viewable, 22mm Thickness, No Touch | Dadonlion Platform / USB Disk Content Upload

Package Included

Version Package Included
22" Model Square LCD Display ×1, Power Cord ×1,  Mounting Bracket Kit ×1,  Honeycomb Cardboard Box ×1

Order & Logistics

Lead Time: Standard production lead time: 10–15 business days

Shipping Method Options:

  • Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
  • Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.

All models are shipped directly from our China headquarters.

DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.

Features:

  • Resolution: 1920*1920 HD resolution
  • Aspect ratio 1:1
  • Brightness 400nits

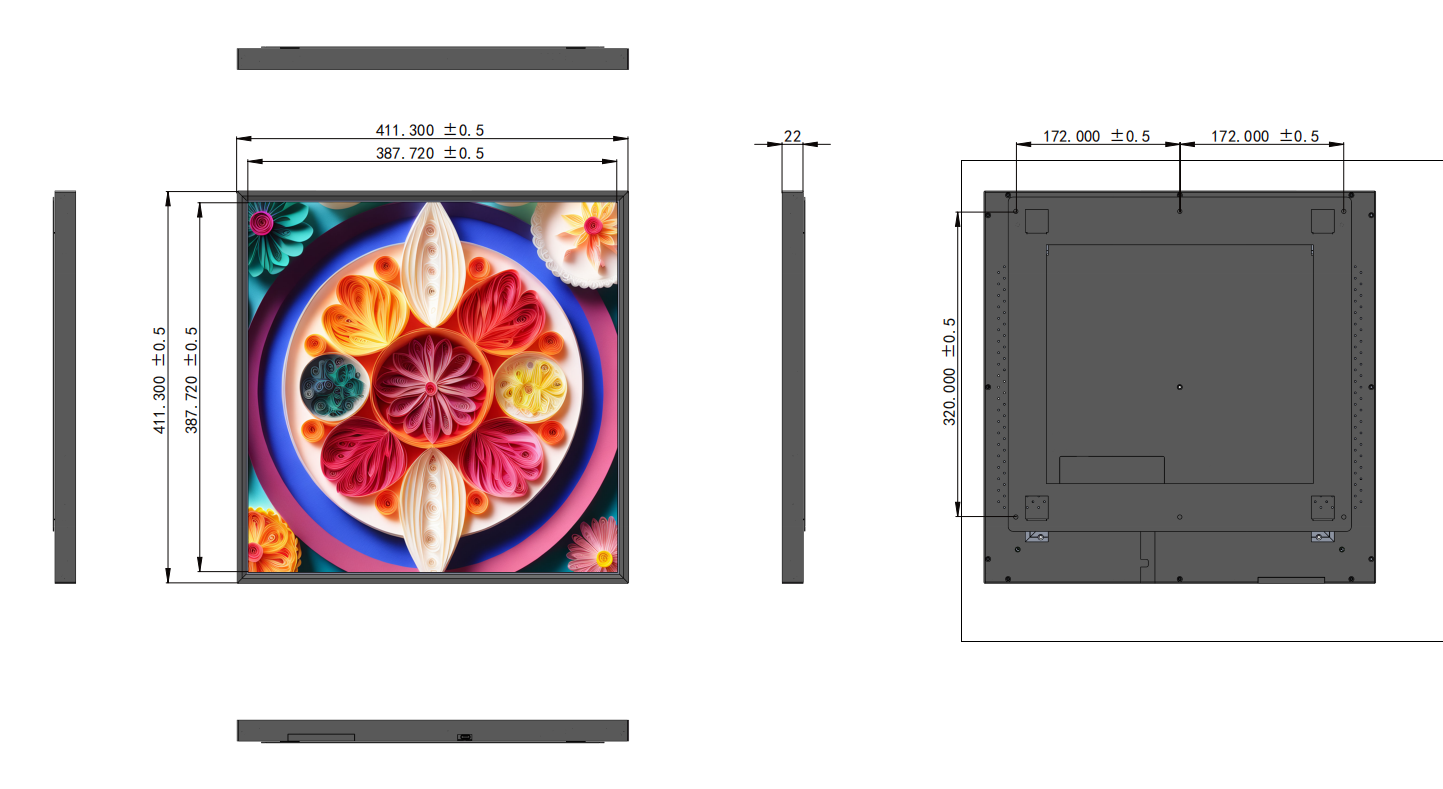

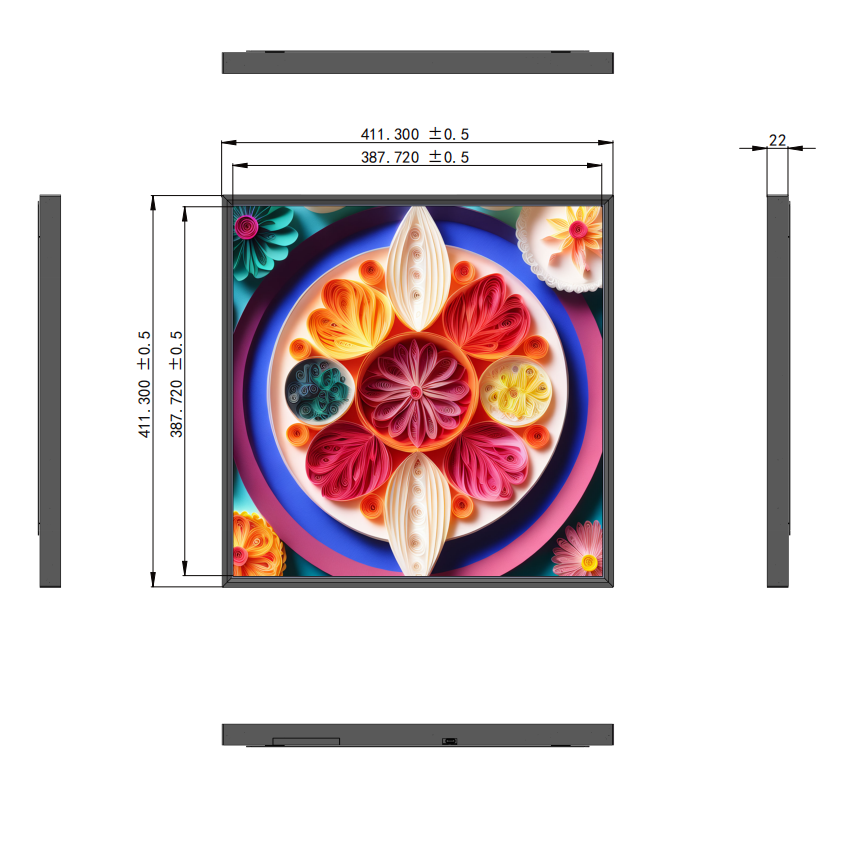

  • Display Area: 387.32mmx387.32mm
  • Product Size: 411.3mmx411.3mm
  • Operating system: HDMI input, or Android
  • Language: English, Chinese
  • Color: black (default)，  or white, silver or golden (accept customization)
  • Installation: wall-mounted or embedded or floor-standing or hanging (need extra mounting bracket for the latter two ways)
  • Free branding logo

Parameters

  • Power supply AC100~240V 50 /60 HZ
  • Life(hrs) >60,000(hrs)
  • Interface : USB*2 / RJ45x1 / HDMI IN x1 / DC INx1
  • Speaker: 2*3W
  • Operating system: Android 8.1
  • RAM 1G
  • ROM 8G
  • Wi-Fi Wi-Fi 802.11RJ45
  • Working temperature 0℃～40℃
  • Storage temperature -10℃~60℃
  • Working humidity 85%
  • Storage humidity 85%

Dadonlion CMS Operation Guidance

Application:

can be used in many places， like Digital Signage Display, Built-in ShopDisplays, Advertisement Display

Product Details
