56.6 Inch Commercial Android Stretched LCD Bar Display – 1431×160mm Viewable Ultra-Wide Shelf Screen | Cloud / USB / Mobile App Control
Package Included
Version
Package Included
56.6"
LCD Bar Display ×1, Power Adapter ×1, Mounting Kit ×1, User Manual ×1
About this item
Ultra-wide 56.6" LCD bar screen with Android OS, ideal for shelf-edge advertising, signage, and creative installations
High resolution up to 3840×1080 ensures ultra-clear display quality
Durable aluminum frame with tempered glass for long service life
Multiple control methods: Cloud CMS, Mobile App, USB plug & play, LAN / Wi-Fi
Optional capacitive touch screen available for interactive applications
Widely applied in retail shelves, shopping malls, exhibitions, transportation hubs, and creative installations
Order & Logistics
Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
Packing: Hard carton with protective inner foam.
Shipping:
Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Specifications
Specification
Value
Screen Size
56.6" (1431×160 mm viewable)
Screen Supplier
LG
Resolution
3840×1080
Display Size (mm)
1431(H) × 160(V)
Brightness
500 cd/m²
Contrast
1200:1
Viewing Angle (H/V)
89/89/89/89 (Min., CR≥10), 178° total
Response Time
8 ms (typical)
Display Colors
1.07G (10-bit)
Pixel Pitch
0.27963 × 0.27963 mm
Refresh Rate
60 Hz
Motherboard
RK3568 Quad-Core ARM Cortex-A55, 2.0 GHz, Mali-G52 GPU
Memory
2 GB RAM + 16 GB Storage
System
Android 11
Interfaces
USB 3.0, OTG, TF card, Audio, RJ45, HDMI In
Audio
Optional Speaker
Remote
Optional Infrared Remote Control
Net Weight
~12 kg

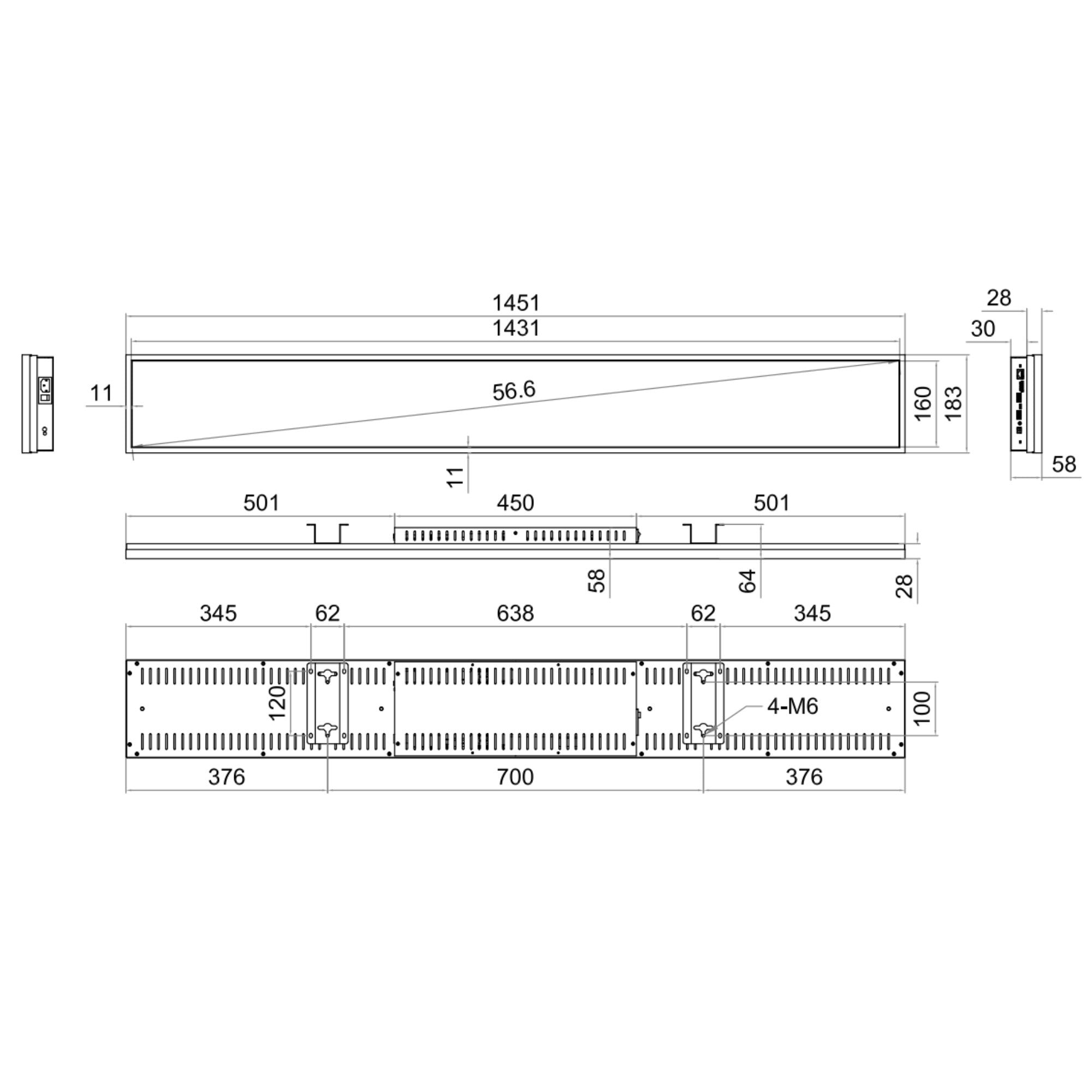

Device Size
1451 × 183 × 58 mm
Casing Material
Metal Sheet
Power Input Voltage
DC 12V
Power Consumption
≤55 W
Standby Power
<1 W
Operating Temperature
0℃ to +50℃
Operating Humidity
10%–90% RH (non-condensing)
Storage Temperature
-20℃ to +60℃
Storage Humidity
5%–95% RH (non-condensing)
OSD Language
English / Chinese
Accessories
Power Cord ×1
Touch Screen
Capacitive Touch Screen Optional
Usage Notes / Operation Tips
Send Program via Cloud Platform
Operation Steps: 1. Login cloud platform 2. Create and edit programs 3. Send programs to the device
Notes: Device must be in networking mode and associated with cloud platform account. Cloud server: www.led-cloud.cn / www.led-cloud.com
Send Program via LEDArt Mobile App
Operation Steps: 1. Run LEDArt mobile app 2. Create and edit programs 3. Send program to the device
Notes: Device must be in stand-alone mode. Mobile phone must be on the same local area network.
Play Program via U-disk / SD Card
Operation Steps: 1. Save programs into U-disk or SD Card 2. Insert U-disk or SD Card 3. Program plays automatically
Notes: Device must be in stand-alone mode. U-disk / SD Card must be formatted to FAT32.
