LP-RS 19.68FT by 9.84FT (6x3 Meters 18SQM) Portable Rolling LED Display Screen P2.604 LED Video Wall Turnkey
$51,990.00 USD $51,990.00 USD
Shipping calculated at checkout.
In stock: 999

LP-RS 19.68FT by 9.84FT (6x3 Meters) Portable Rolling LED Display Screen P2.604 LED Video Wall Turnkey

NOTE: The price in this page, the shipping include is by SEA +delivery, 35-40days in transportation. If need fast shipping by AIR, please help to contact for cost.

SPECIFICATION
Mode GOB-R2.604-18SQM
Pixel Pitch 2.604mm
Screen Size 19.68FT by 9.84FT - (H) 3m X(W) 6m
Screen Area 18m²
LED Configuration SMD1515
Pixel Density 147456 dots/m²
Module Size 500x62.5 (mm)
Module Resolution 192x24
Screen Resolution 2304x1152
Scan Mode 24S
Brichtness 700~1000nits
Viewing Angle 140°
Color Depth 12-16bit
Colors 4096 -65,536
Refresh Frequency 3840HZ
Thickness 30mm
Weight: 15KG/SQM
Controller  Sending Box NOVASTAR VX600
IP rating          IP65(front)/IP21(rear)
Application Indoor or dry location
Input Voltage 100-240V AC
Max. Power Consumption 510 Watt/m²
Avg. Power Consumption 170 Watt/m²
Life Span 100,000 Hours
Maintenance Way  Front /rear



PACKAGE INCLUDED
# Item QTY. Unit
1 P2.604 Rolling Floor LED Screen body (W6*H3m) 18.0  m2
2 Power Supply -QianYuan-2000W-24V with suitcase 6 pcs
3 Sending Box NOVASTAR VX600 1 pcs

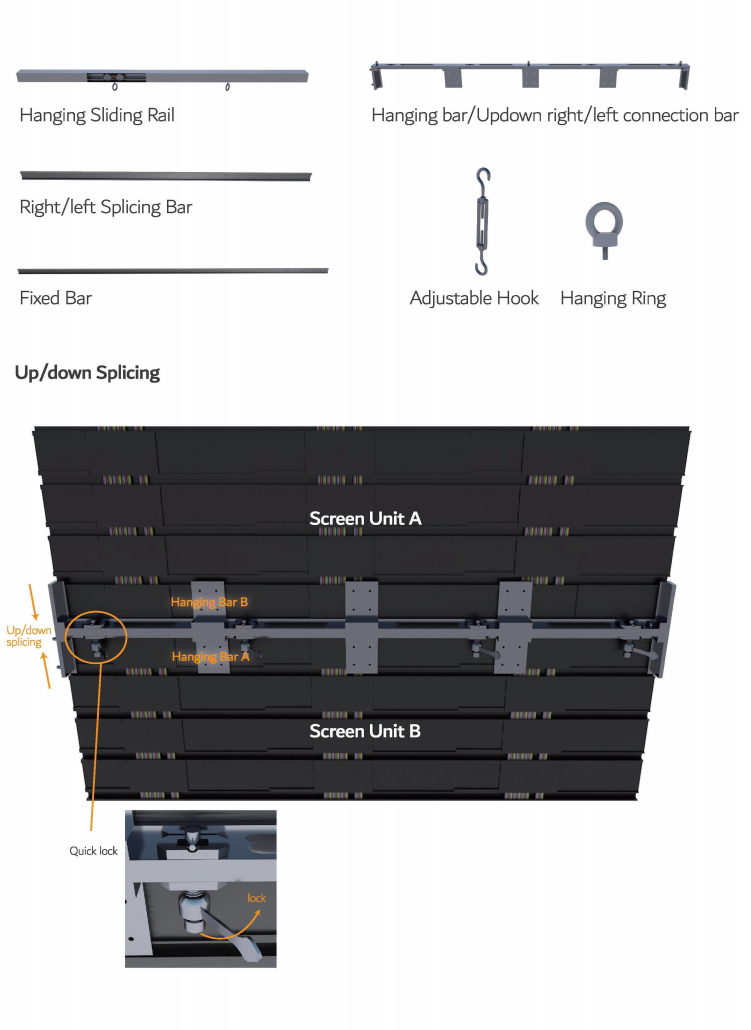

4 Hanging Bar  (aluminum 1meters/pc) 6 pcs
5 Left and right splice strips 5 set
6 Flight Case 3 pcs
SPARE PARTS
# Item QTY. Unit
1 Module 18 pcs
2 Receiving Card 6 pcs
2 24V Cable 2 pcs
3 Flat Cable 40 set
4 Signal Cable 4 set
5 Left and right splice strips 2 set
6 Configuration File 1 set


Rolling LED Display Screen Catalog


FEATURES
  • Fine pixel pitch: P2.604: Small pitch pixel ensures the HD display,higher contrast and more realistic colors
  • GOB Technology (IK10 &IP65) : Surface safty with IK10 anti-collision grade and IP65 Waterproof grade,also with Non-slip mat and anti-reflection.And high visual performance (with high contrast LED for uniform visual performance in black)are considered.
  • Built-in receiving card: save space.
  • 6063 Aluminum module case : Aluminum case adopts stretching process,which makes sure the accurate size and have the best heat dissipation from the LED.
  • Low voltage input : :Low voltage 24V/DC input for every unit screen ensures safer use.
  • Free installation and easy maintenance : lts simple structure allows for easy installation and quick maintenance. Hanging, ideal for overhead truss system, a
    ceiling grid, a crane, or other support structure from above.; Wall Mountable, stickable compatible surface.
  • Low voltage input ：Low voltage 24V/DC input for every unit screen ensures safer use.
