LP-F Series Foldable Extra-Large LED Poster Sign | 1000×2250mm | P1.25 / P1.56 / P1.95 / P2.6 | 1 / 3 / 6-Pack | GOB Surface + Magnetic Frame | Available

Name: LP-F Series Foldable Extra-Large LED Poster Sign | 1000×2250mm | P1.25 / P1.56 / P1.95 / P2.6 | 1 / 3 / 6-Pack | GOB Surface + Magnetic Frame | Available
Brand: LumoMark
SKU: DTP01-LP-F-L-P1.25-1P
Price: 13800.0 USD
Availability: InStock

$13,800.00 USD

Shipping calculated at checkout.

Pixel Pitch P1.25

P1.25
P1.56
P1.95
P2.6

Package Qty 1-Pack

1-Pack
3-Pack
6-Pack

Product variants

In stock: 9999

LP-F Series Foldable Extra-Large LED Poster Sign | 1000×2250mm | P1.25 / P1.56 / P1.95 / P2.6 | 1 / 3 / 6-Pack | GOB Surface + Magnetic Frame | Available

PRODUCT INTRODUCTION AND USING TIPS!

FEATURES:

【Extra Large Display Area】 ： W3.28FT by H7.38FT / W1000mm by H2250mm, made with 250x250 mm LED Display Modules. Complete Poster is in 2500mm/8.2FT tall.
【Multiple Pixel Pitch Options】 ：Available for various pixel pitch options: P1.25, P1.56, P1.95, P2.6.
【Upgraded Wheel for Heavy Duty and Free Standing】 ：Equipped with a universal super heavy-duty adjustment wheel to increase the load-bearing capacity, and the gap between the screens can be adjusted by adjusting the height of the screws.
【Multiple Pieces Linkable】 ：LED poster video display allow for multi-pieces chain together and get big SEAMLESS display screen. Please refer to "ABOUT SPLICING and CONTROLLER" Table.

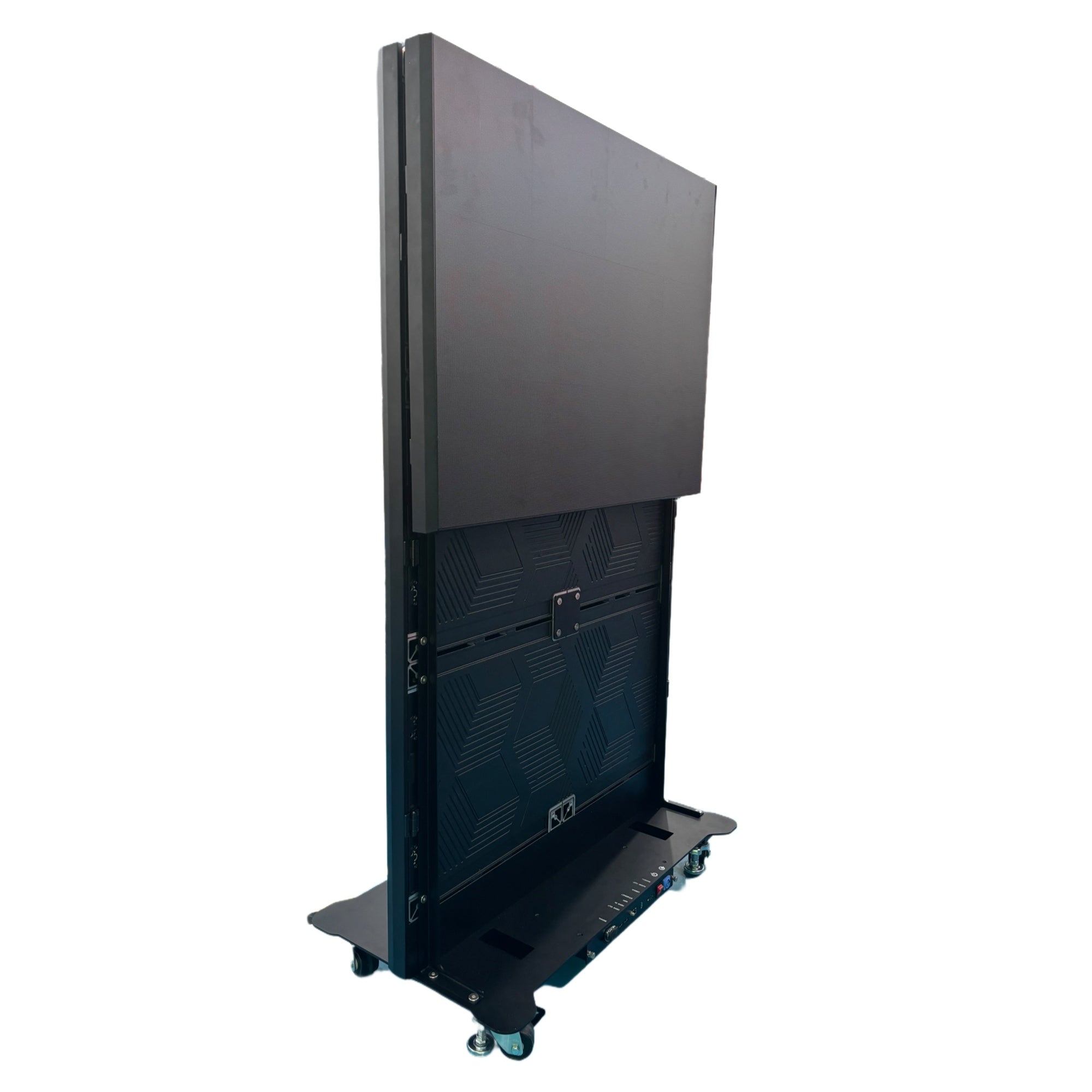

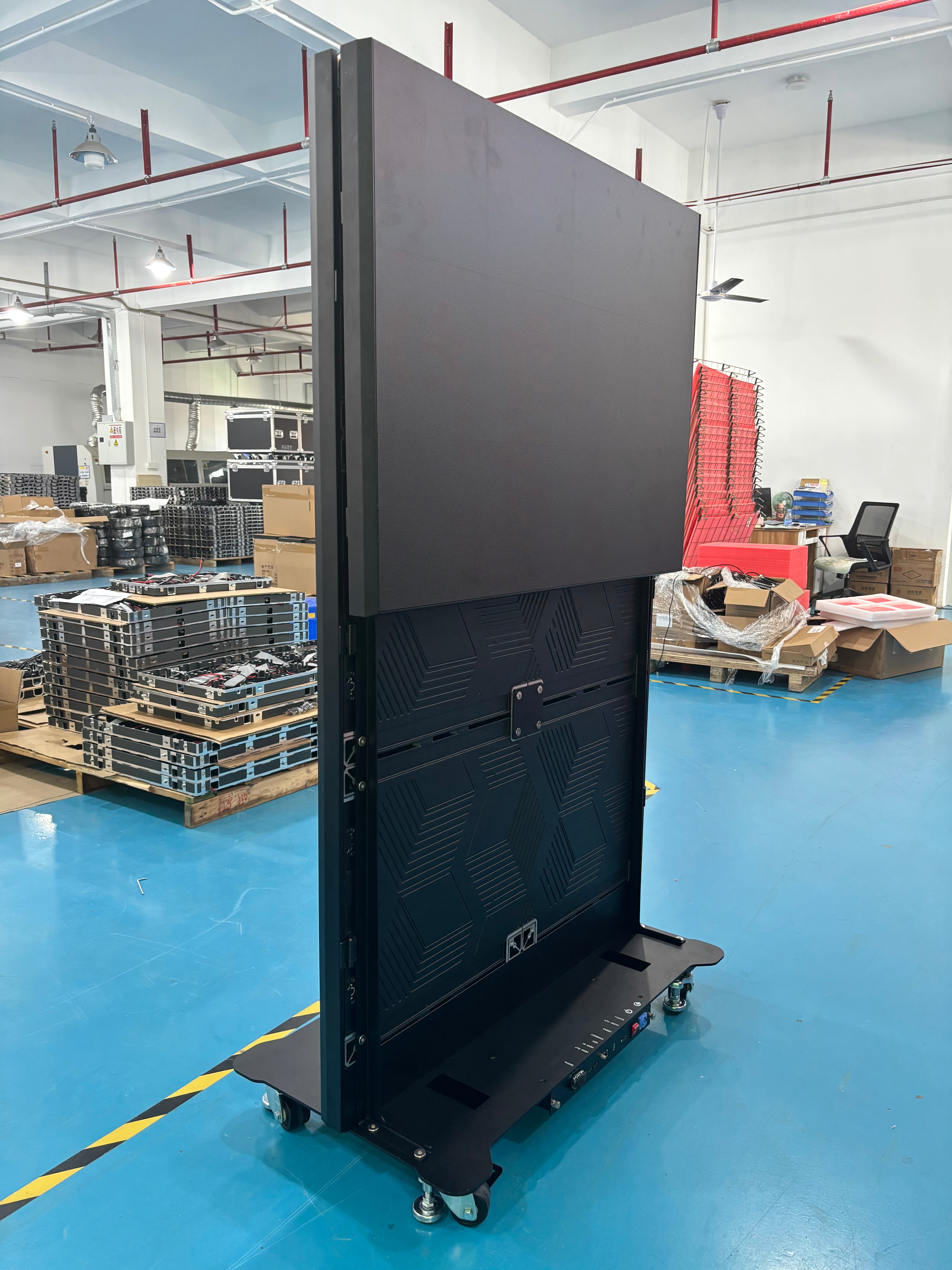

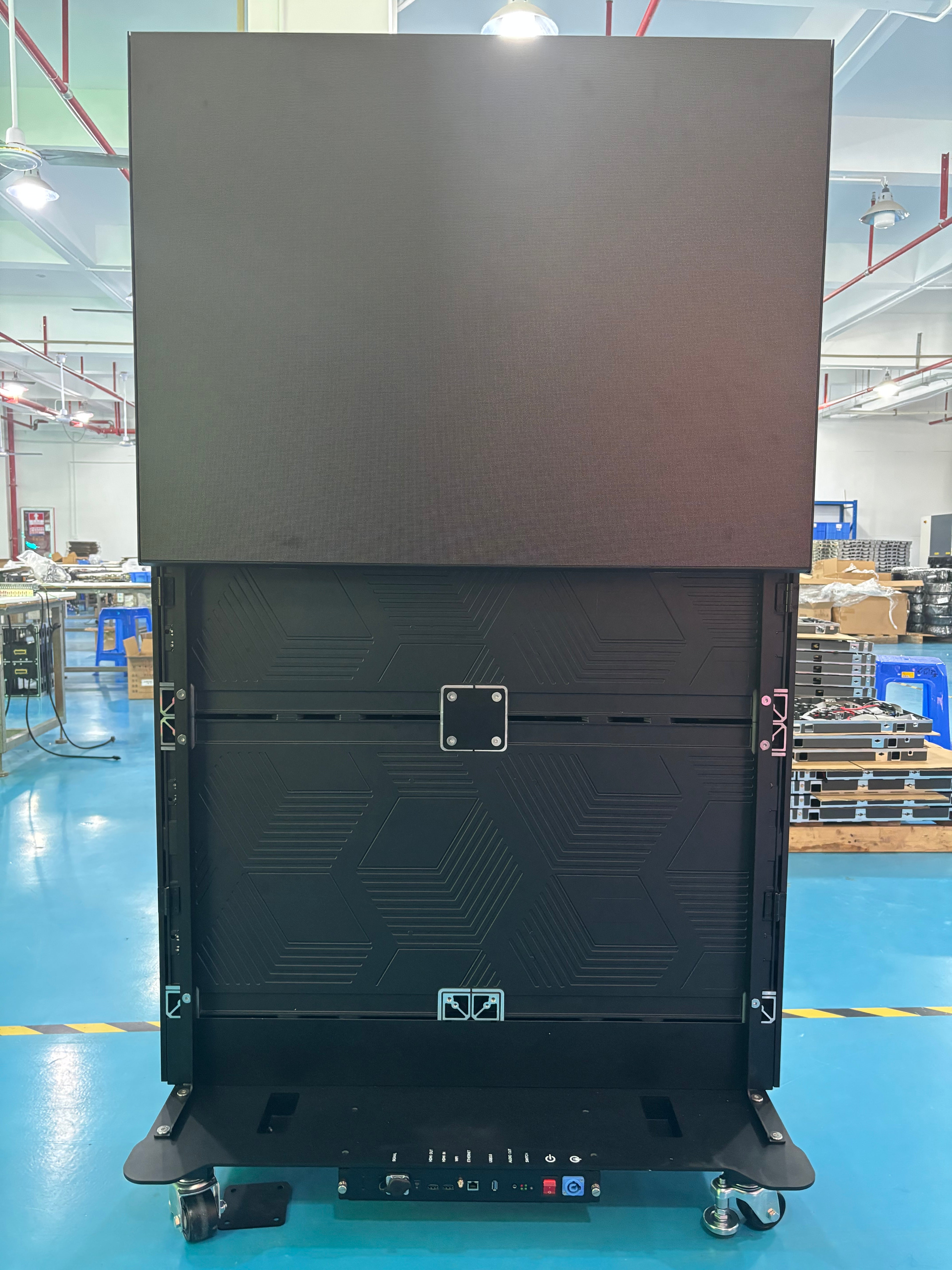

【Upgraded Frame】: Made with Backward Foldable Bracket, to save transportation and storage space. Upgrade with flip open magnetic frame, making multi-screen combination process simpler. Just need to ope the edge frame and fasten the quick locks of the two adjacent LED digital posters.
【GOB Technology】 ：GOB (gel on board) Technology LED module protecting from water, bump and dust. Modules are fixed with magnets, front access for maintenance.

ABOUT SPLICING and CONTROLLER

Model #	Display Area (W*H)	Module QTY.		Resolution		Support Splicing QTY.
Model #	Display Area (W*H)	W	H	W	H	AD20①	TU20 Pro ②	TU4K Pro ③
EP-F-L-P1.25	1000X2250	4	9	800	1800	n/a	2	6
EP-F-L-P1.56	1000X2250	4	9	640	1440	n/a	3	10
EP-F-L-P1.95	1000X2250	4	9	512	1152	n/a	6	20
EP-F-L-P2.6	1000X2250	4	9	384	864	6	6	20
Remarks: ① AD20 is the built-in control card in the LED poster. To splicing more pcs LED poster together need to use External Controller. ②TU20 Pro is external controller with loading capacity 3.9 million; ③TU4K Pro is external controller with loading capacity 13 million.

PACKAGE INCLUDED :

LEAD TIME & DELVIERY :

【Lead Time】: The products takes 30-40 days to make if none in stock (P1.95 and P2.6 takes 30days, while P1.25 and P1.56 takes 40days).
【Packing】：The LED Signage Poster will be packed in road rolling air-flight case for shipping (1 LED poster per case).
【Free Shipping】：
For shipping, the prices on this page include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
DDP TERM (delivery duty paid, all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.

SPECIFICATON :

Item	Specification	EP-F-L-P1.25	EP-F-L-P1.56	EP-F-L-P1.95	EP-F-L-P2.6
Module Parameter	Pixel Pitch (mm)	1.25	1.56	1.95	2.6
	Pixel Structure	SMD 1R1G1B, GOB Selectable
	Pixel Density(dot//m²)	640,000	409,600	262,144	147,456
	Module Size(W*H)(mm)	250*250	250*250	250*250	250*250
	Module Resolution(W*H)(dot)	128*128	160*160	128*128	96*96
	Maximum Current(A）	7	7	7	7
	Supply Voltage(V)	5	5	5	5
	Scanning Method	1/50	1/40	1/32	1/32
	Refresh Frequency(Hz)	≥3840
	Illumination(cd//m²)	600~700
	Driver IC	Constant Current Drive
	Contrast Ratio	≥8000:1
Screen Parameter	Display Area Size(W*H)	1000mm X 2250mm (3.28x7.38 FT)
	Cabinet Size(WHD)	1000mm X 2500mm (3.28x 8.2 FT)
	Cabinet Material	Die Casting Aluminum
	Cabinet Weight(kg)	75
	Enclosure Connection Method	Screw Fixing
	Installation/Maintenance Methods	Front and Rear Installation/Front Maintenance
	Color Temperature/Luminance Uniformity	3200-9300K；≥98%
	Chromatic Uniformity	±0.003Cx,Cy
	Horizontal/Vertical View	≥140°/≥120°
	Single-point Color Correction	Available
	Single Point Brightness Correction	Available
	Frame Rate(Hz)	50/60
	Protection Level	IP30
Control Way	Standard Receiver Card	Novastar A5S-PLUS
	Control Card	Novastar AD20

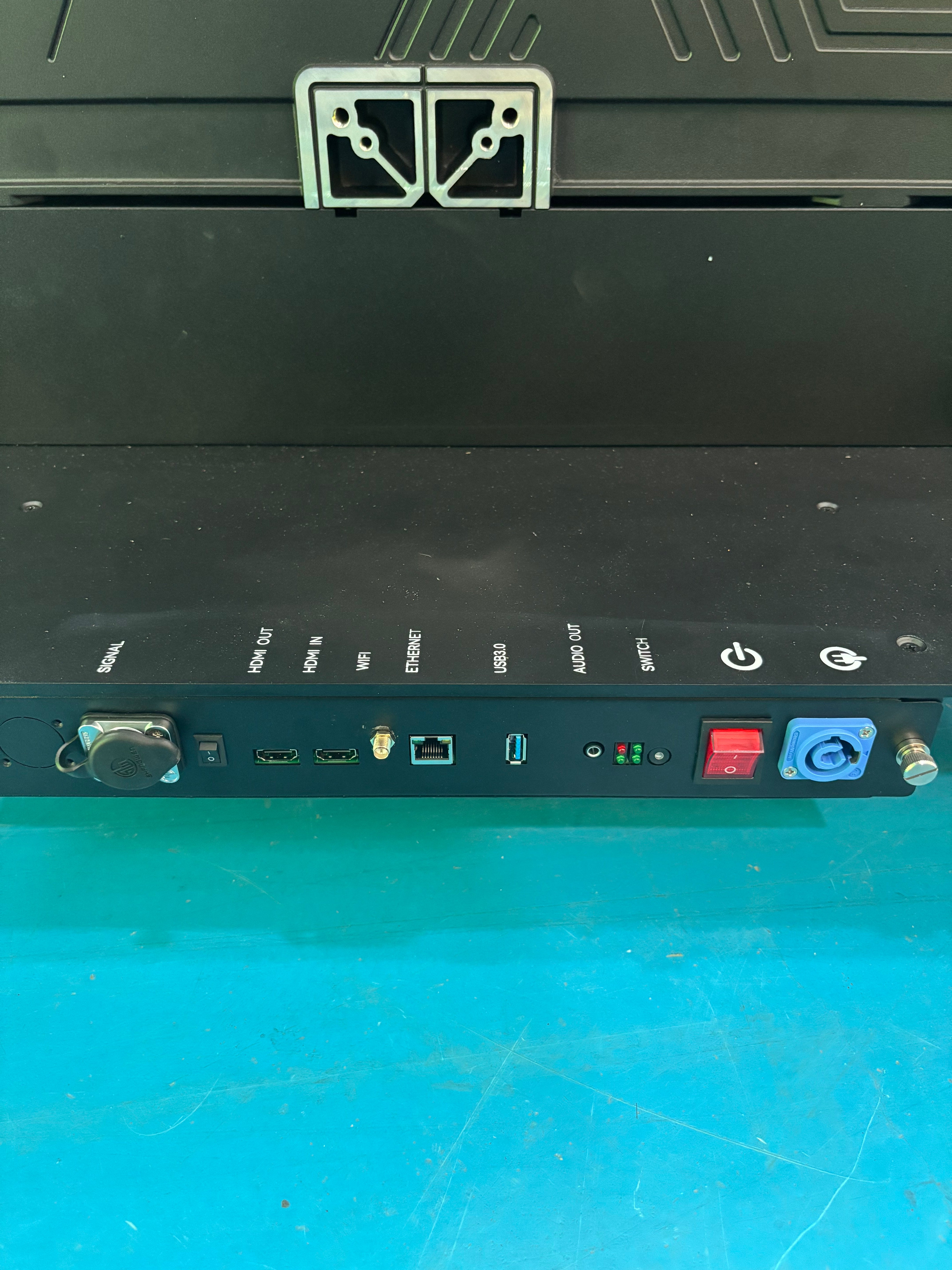

	Connections Power/Data	1x Data EtherCon In; 1x Signal Conversion Switch; 1x Audio Out; 1x Ethernet RJ45; 1x HDMI in and 1x HDMI out; 1x WiFi Antenna Fixing port; 1x USB3.0; 1x Locking power In;1x Power Switch
	Publishing System	Asynchronous Control via Mobile APP (APP Name: Viplex Handy) or Synchronous Control via PC Software (Viplex Express), Sync with PC screen via HDMI, and Novastar VNNOX Care Cloud Platform.
	Program Format	Supported Picture formats: JPEG, BMP, GIF, PNG, WEBP * Supported Video formats: AVI, MKV, MP4, MOV, 3GP, DAT, MPG, VOB, TS, FLV, WEBM, WMV, ASF, TS
Power	Power Interface Method	Plug type fit for destination country
	Input Voltage Range AC(V)	100-240
	Peak Power Consumption(W/m²)	≤620
	Average Power Consumption(W//m²)	≤310
Environment	Working Temperature and Humidity Range	-20℃～+50℃,10%～95%RH
	Storage Temperature and Humidity Range	-40～+70℃,10%～95%RH
	Service Life(H)	≥100000
	Mean Time Between Failure(H)	≥10000

APPLICATIONS:

The poster display can be widely used in retail stores, hotels, restaurants, shopping malls, banks, companies, hospitals, schools, airports, subway stations and etc.
