SL Series 51.7 Inch Super Slim Square LCD Digital Screen – 928.26×928.26mm Viewable, 22mm Thickness, No Touch | Dadonlion Platform / USB Disk Content Upload
$3,690.00 USD $3,690.00 USD
Shipping calculated at checkout.
Screen Type Without Touch Screen
Package QTY. 1pcs Pack
In stock: 999

SL Series 51.7 Inch Super Slim Square LCD Digital Screen – 928.26×928.26mm Viewable, 22mm Thickness, No Touch | Dadonlion Platform / USB Disk Content Upload

Package Included

Version Package Included

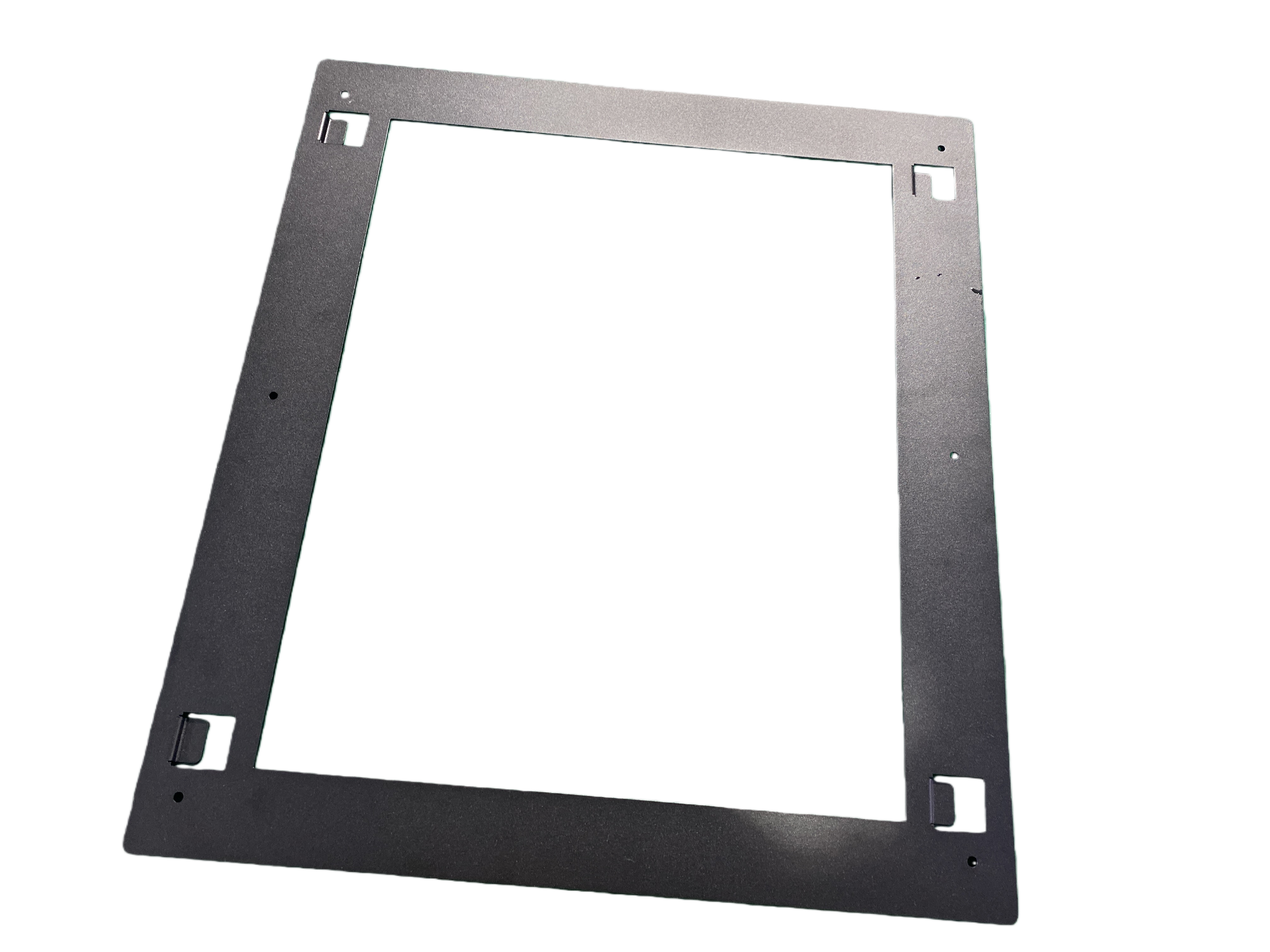

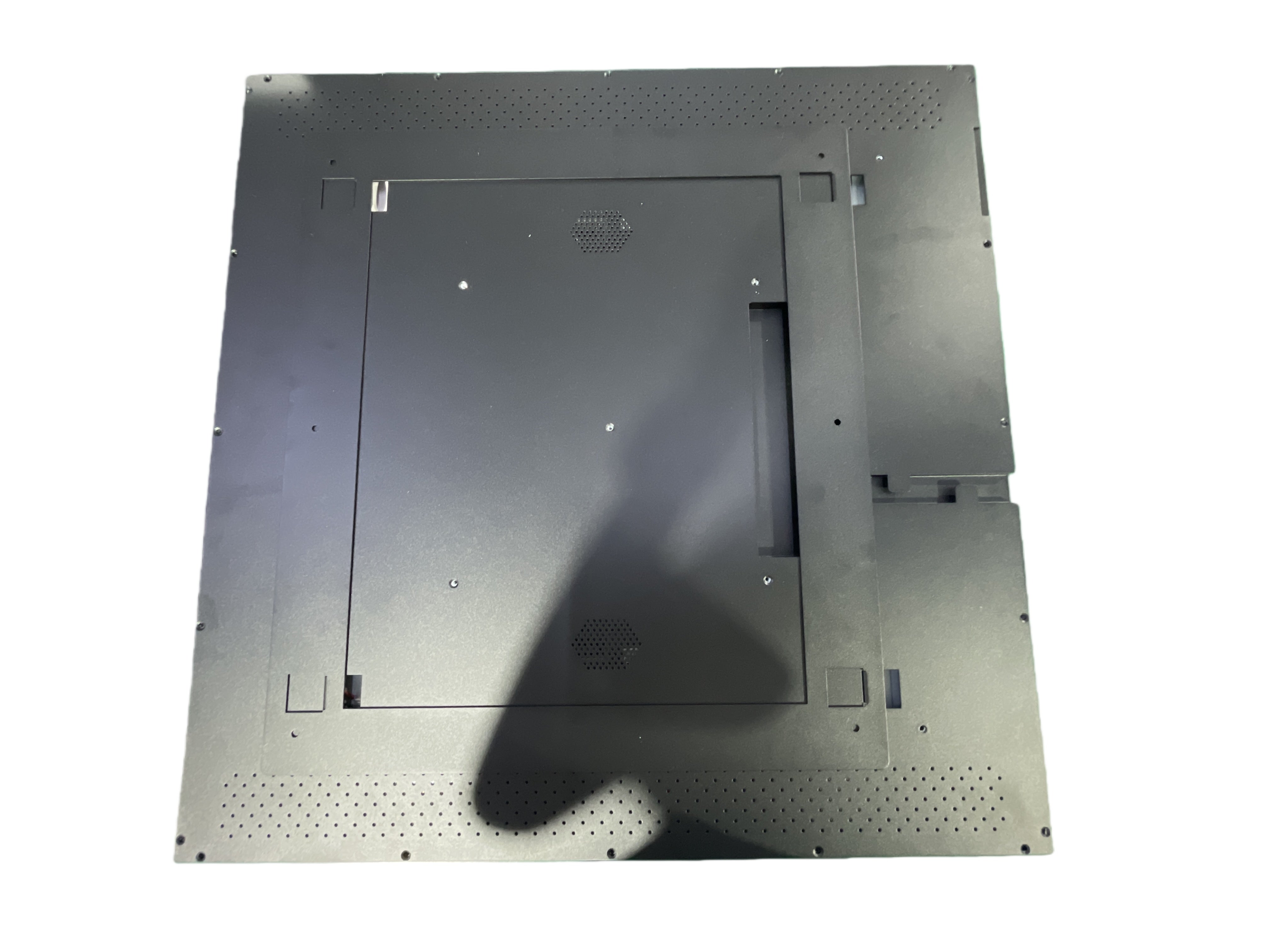

51.7" Model Square LCD Display ×1, Power Cord ×1,  Mounting Bracket Kit ×1,  Honeycomb Cardboard Box ×1

Order & Logistics

Lead Time: Standard production lead time: 15–18 business days

Shipping Method Options:

  • Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
  • Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.

All models are shipped directly from our China headquarters.

DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.

Specification (DOWNLOAD FULL DATASHEET)

Screen
Parameters 		Model 51.7‘’
Panel Type a-Si TFT-LCD
Display Area 928.26mm(H)x928.26mm (V)
Aspect Ratio 1 ：1
Resolution 2160X2160
Display Colors 16.7M
Dot Pitch 0.42975×0.42975 mm
Brightness 400CD
Contrast Ratio 4000 ：1
Viewing Angle 178 °
Response Time 8ms
Refresh Rate 60Hz
Menu Language Chinese/English
Display
Interfaces 		Video Port N/A
Audio Port N/A
Other Ports N/A
System
Parameters 		CPU ARM Cortex-A55
Memory 2G DDR3
HDD 16G EMMC
Wi-Fi 2.4G WIFI
802.11b : DQPSK, DBPSK, CCK
802.11g/n : 64-QAM,16-QAM, QPSK, BPSK
Bluetooth N/A
Ethernet Port N/A
Supported Interfaces TF Card×1/USB×1 Type-cX1
OS Version Android 9.0
Power Input Voltage ~AC 100-240V 50/60Hz
Maximum Power Consumption ≤95W
Standby Power Consumption ≤0.5W（ Board only）
Others Storage Temperature -20--60 °
Amplifier Wattage 2×5W

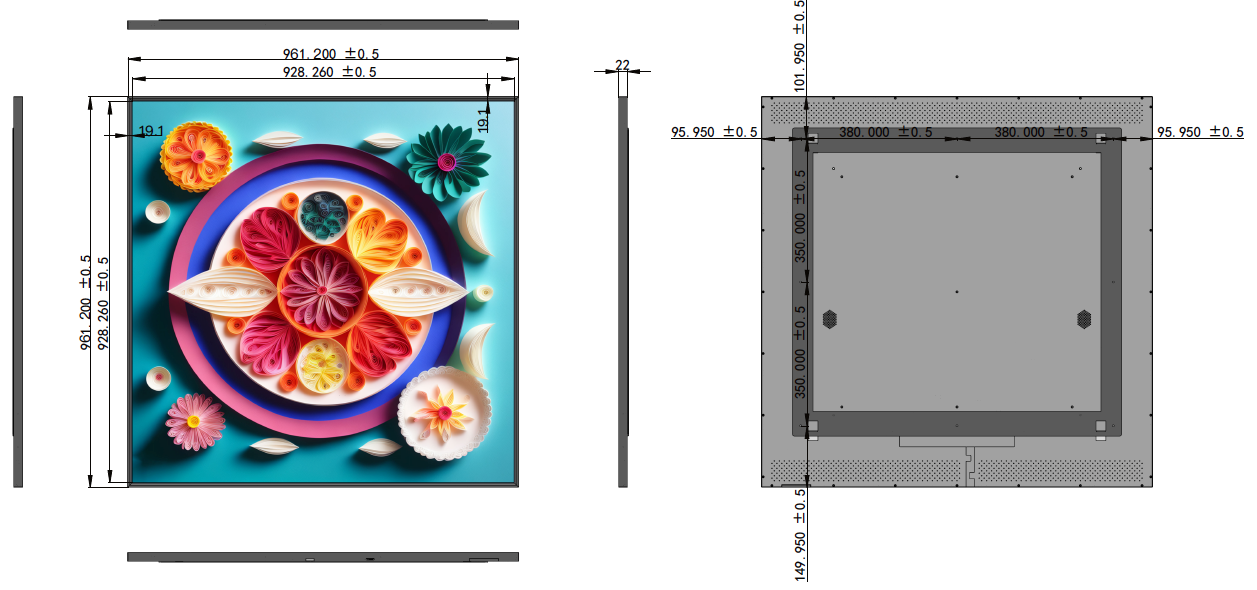

Dimensions 961.2×961.2×22mm
Net Weight 19.5KG
Mounting Method Wall Mounting
Wall Mounting Location 700mmX720mm
Accessories Remote Control X1
Warranty Card, Certificate of Confo X1

Dadonlion CMS Operation Guidance

Product Details

can be used in many places， like Digital Signage Display, Built-in ShopDisplays, Advertisement Display
